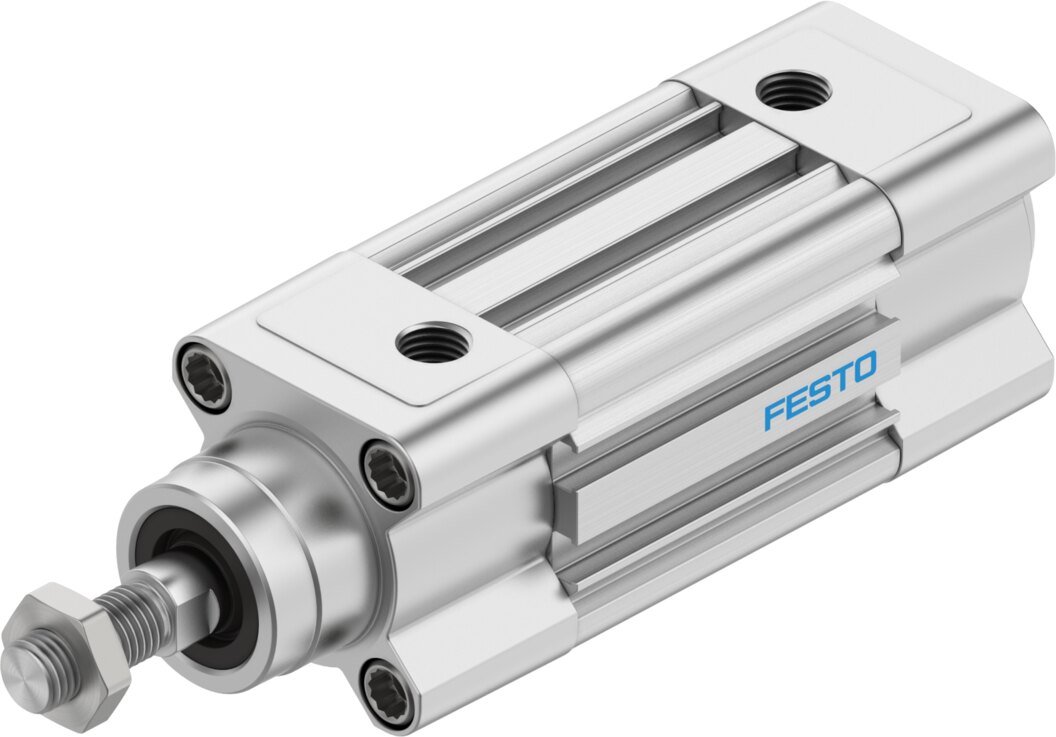

Festo ISO 15552 double-acting pneumatic cylinder, 32 mm bore, 20 mm stroke, D3 configuration, with self-adjusting pneumatic cushioning (PPS).
Technical specifications
- Stroke: 20 mm
- Piston diameter: 32 mm
- Piston rod thread: M10x1.25
- Cushioning: Self-adjusting pneumatic end-position cushioning
- Mounting position: Any
- Conforms to standard: ISO 15552
- Piston rod end: External thread
- Structural design: Piston
- Piston rod: Profile barrel
- Position sensing: Via proximity switch
- Symbol: 00992970
- Variants: Piston rod at one end
- Mode of operation: Double-acting
- Corrosion resistance class (CRC): 2 – Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Ambient temperature: -20 °C … 80 °C
- Impact energy in the end positions: 0.4 J
- Cushioning length: 17 mm
- Theoretical force at 6 bar, retracting: 415 N
- Theoretical force at 6 bar, advancing: 483 N
- Moving mass: 128 g
- Moving mass at 0 mm stroke: 110 g
- Additional moving mass per 10 mm stroke: 9 g
- Product weight: 541 g
- Basic weight with 0 mm stroke: 480 g
- Additional weight per 10 mm stroke: 31 g
- Type of mounting: With internal thread
- With accessories: Pneumatic connection
- G1/8: Note on materials
- RoHS compliant: Cover material
