DSBC-32- -PPVA-N3 ISO cylinder

Description

Overview

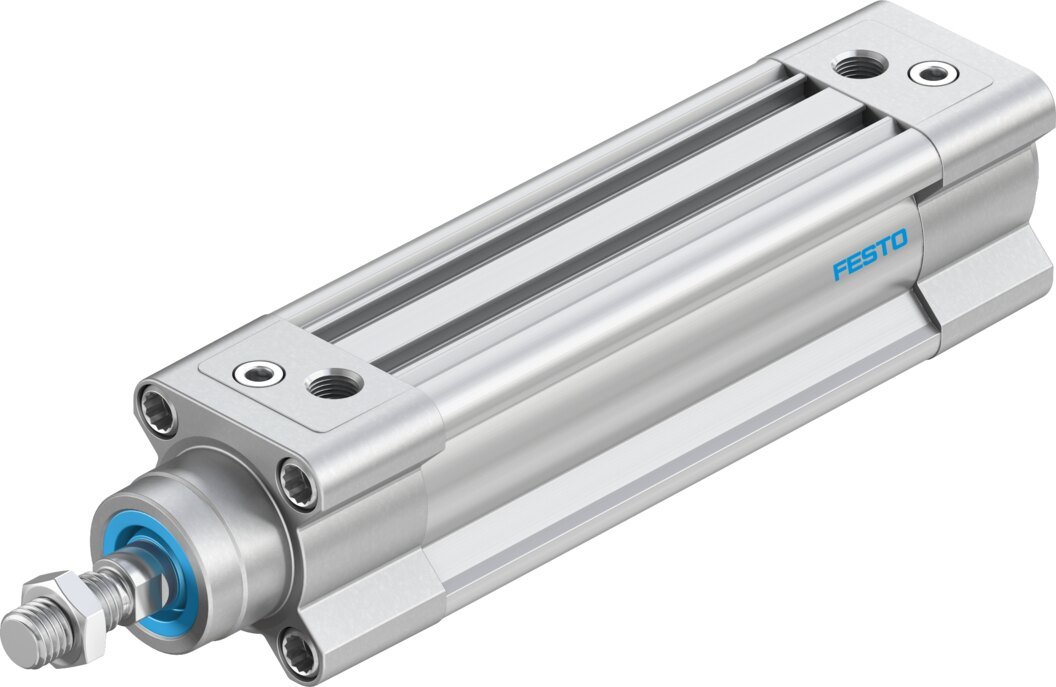

Festo DSBC-32-__-PPVA-N3 ISO 15552 double-acting pneumatic cylinder, 32 mm bore, with adjustable pneumatic cushioning at both ends.

Technical specifications

• Stroke: 1 mm … 2800 mm
• Piston diameter: 32 mm
• Piston rod thread: M10x1.25
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Mounting position: Any
• Conforms to standard: ISO 15552
• Piston rod end: External thread
• Structural design: Piston
• Piston rod: Profile barrel
• Position sensing: Via proximity switch
• Variants: Piston rod at one end
• Mode of operation: Double-acting
• Corrosion resistance class (CRC): 2 – Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
• Ambient temperature: -20 °C … 80 °C
• Impact energy in the end positions: 0.4 J
• Cushioning length: 17 mm
• Theoretical force at 6 bar, retracting: 415 N
• Theoretical force at 6 bar, advancing: 483 N
• Moving mass at 0 mm stroke: 110 g
• Additional moving mass per 10 mm stroke: 9 g
• Basic weight with 0 mm stroke: 465 g
• Additional weight per 10 mm stroke: 27 g
• Type of mounting: With internal thread
• With accessories: Pneumatic connection
• G1/8: Note on materials
• RoHS compliant: Cover material
• Die-cast aluminum, coated: Piston seal material
• TPE-U(PU): Material of piston
